SBT2000S Single-lane swing barrier turnstile


  • A design for both disabled and non-disabled users
  • MCBF of 5-million times
  • Smart indicator modes representing the standby, successful verification and access denied status


  • Anti-collision
  • Barrier unlock automatically during a power outage
  • Fast and straightforward card and fingerprint authentication
Categories: ,

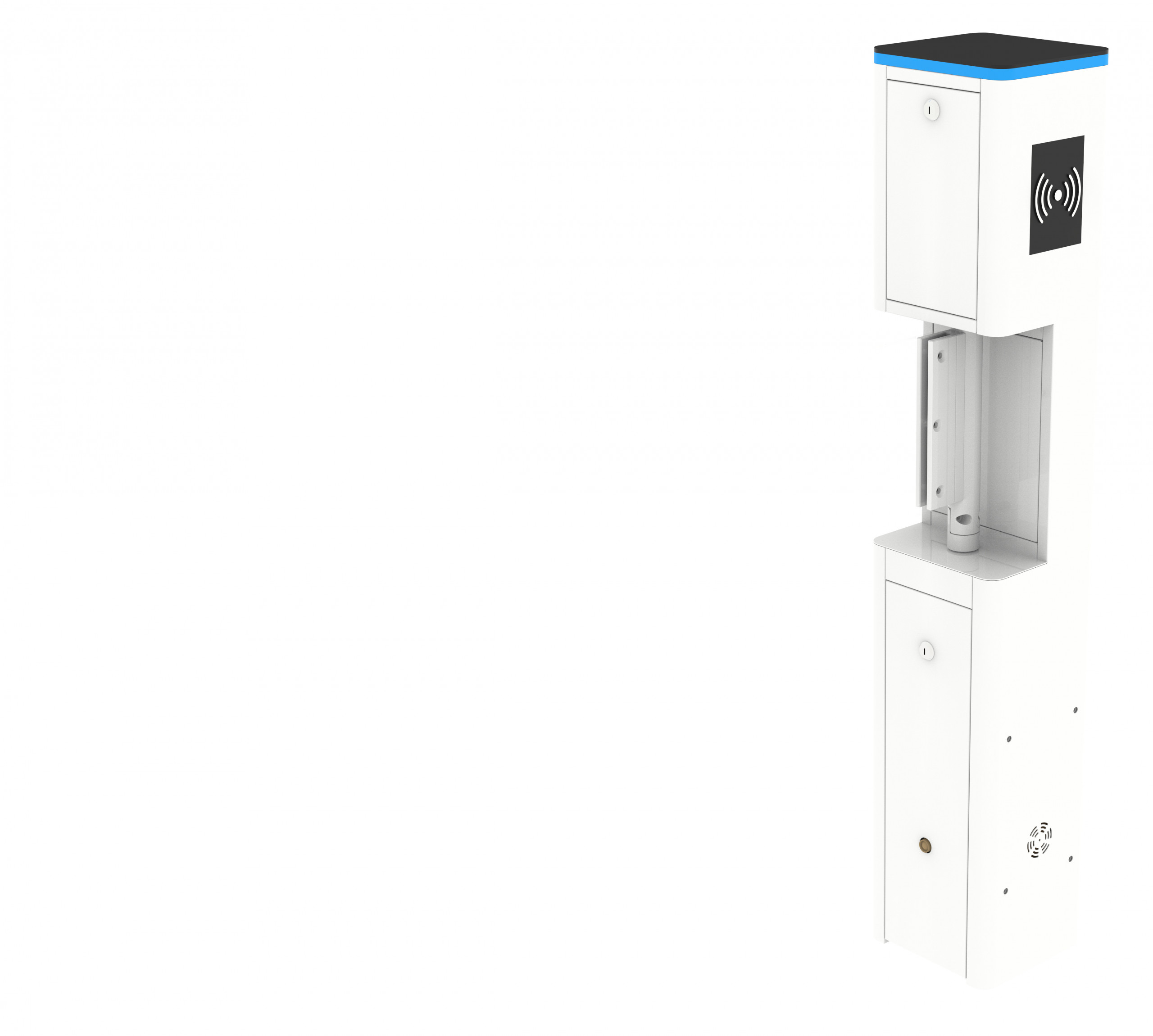

The SBT2000S Series of wide-passage single-lane swing barriers is an elegant and cost-effective entrance control system specially designed for large parcel delivery and people with physical disabilities.

The SBT2000S Series offers a single-lane swing barrier designed for smooth and quiet operation and draws very little power. The width of the lane is 800mm. The default gate opening/closing time is 3 seconds. The sensitive infrared sensor installed at the bottom part of the gate could avoid accidental hurt by the moving barrier glass. Besides, during a power outage, users could simply push and open the gate then leave the area.

Additional information

Power Requirements

AC 110V/220V, 50/60Hz

Lane Width (mm)


Infrared Sensor

A sensor

LED indicator


Cabinet Material

Cold rolled sheet (optional: SUS304 stainless steel)

Lid Material


Barrier Material

Tempered glass (optional: stainless steel or acrylic)

Barrier Movement


Emergency Mode


Working Temperature

-15°C to 60°C

Working humidity

20% to 93% (non-condensing)

Working environment

Indoor / Outdoor (if sheltered)

Dimensions (L*W*H)

202 * 187 * 1109 (mm)

Dimensions with Packing (L*W*H)

280 * 280 * 1160 (mm)

Weight (kg)


Weight with Packing (kg)
